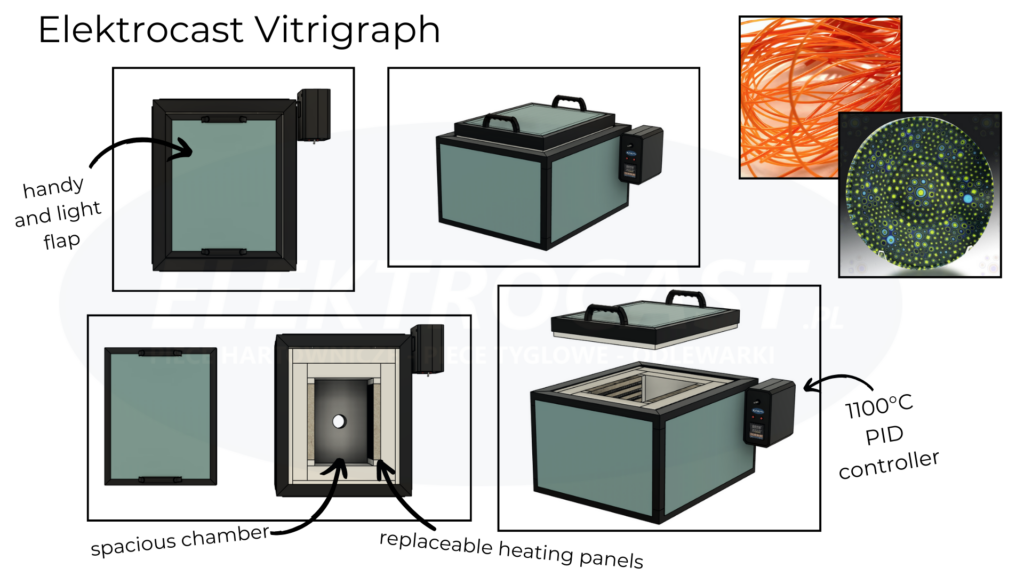

Vitrigraph Kiln
We design and manufacture dedicated kilns for pulling glass rods, stringers, twisties, as well as elements for mosaics and murrini slices. The suspended structure with a bottom aperture enables smooth and safe gravity-fed liquid glass forming.
Why Choose Our Vitrigraph Kiln?
Thoughtful design ensuring optimal glass viscosity and operational safety
Temperature up to 1000°C
High-quality Kanthal A-1 heating coils ensure rapid heating to molten glass temperature and a stable pulling process.
Dedicated Bottom Hole
A specially designed chamber bottom enables precise flow of molten glass and easy installation of crucibles or molds.
Novus PID Control
Precise temperature control prevents glass overheating and maintains ideal viscosity during stringer pulling.
Vitrigraph Kiln Technical Specification
Basic parameters and standard equipment
| Parameter | Technical Specification |
|---|---|
| Maximum Temperature | 1000°C (continuous operation) |
| Loading Method | Top-loading (removable / hinged lid) |
| Heating Elements | Coils made of Kanthal A-1 resistance wire in fireclay plates |
| Thermal Insulation | Multi-layer, dust-free ceramic fiber blanket and impregnated boards |
| Temperature Control | Digital PID controller (Novus N1050) with Type K thermocouple sensor |
| Power & Power Supply | approx. 2.5 – 3.5 kW / 230 V (standard household outlet) |
| External Construction | Solid, powder-coated welded steel frame on an elevated stand |

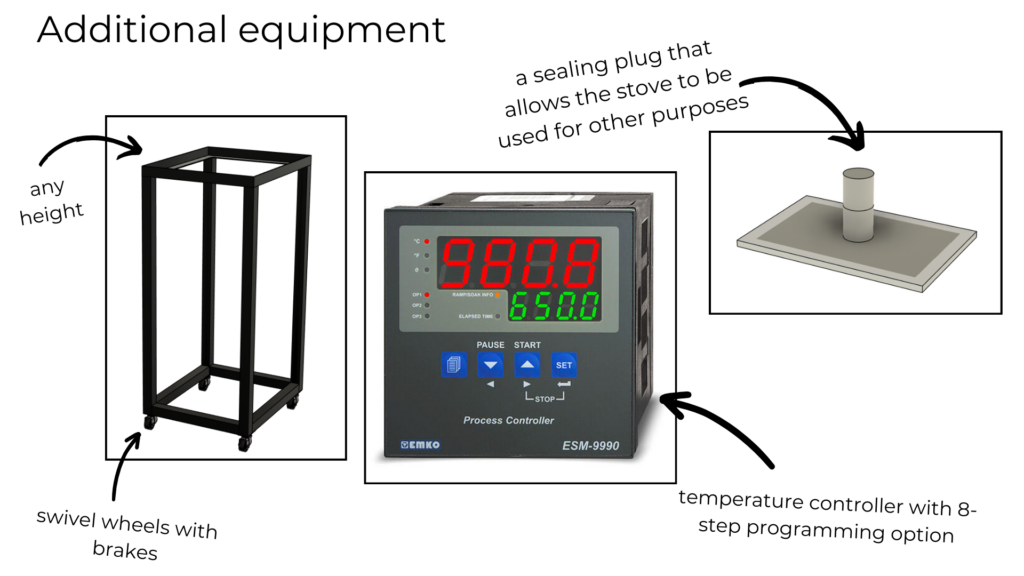

* Need a Vitrigraph kiln with a custom aperture diameter or stand height? Send us an inquiry for a custom build.
What Can You Create with a Vitrigraph Kiln?
Unlimited possibilities for crafting custom glass components
Stringers & Rods
Pulling thin, uniform glass threads of various thicknesses for decorating fused glass and stained glass.
Murrini Slices
Creating multi-colored glass canes that yield striking mosaic patterns when sliced.
Twisties & Spiral Canes
Hand-twisting multi-colored strands of dense glass into unique, decorative spiral patterns.
Glass Color Blending
Blending glass scraps with the same COE into new, unique color compositions.
